ALLIED
BRAND AUTOMATIC COLD THREAD ROLLING MACHINES
|
|
AUTOMATIC COLD THREAD ROLLING MACHINES |

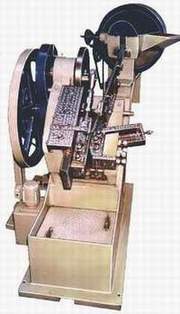

Automatic Cold Thread Rolling Machine |
|
ALLIED Automatic Cold Thread Rolling Machines are suitable for threading screws bolts, cycle and automatic parts and other similar components from mils steel, brass & aluminium etc. Two flat dies used in these machines are easily fitted & all adjustments are very simple. A water coolant pump keeps the dies cool. |
|
SPECIFICATIONS
|
||||
|
SIC/DH No.
|
Length of blank
|
Wire Guage or Dia of
bolt
|
Production Per Minute
|
Motor H.P. & R.P.M.
|
|
1
|
1/4" - 1"
|
14/9" - 1/16"
- 1/8"
|
100 - 125
|
1.5 x 960
|
|
2
|
3/4"
- 1½"
|
12/9" - 1/8"
- 3/16"
|
70 - 100
|
2 x 960
|
|
3
|
1/2" - 2"
|
3/16" - 1/4"
|
60 - 80
|
5 x 960
|
|
4
|
3/4" - 3"
|
1/4" - 3/8"
|
50 - 60
|
7.5 x 960
|
|
5
|
1" - 4"
|
5/16" - 1/2"
|
40 - 45
|
15 x 960
|
|
6
|
1½" - 5"
|
3/8" - 5/8"
|
30 - 35
|
20 x 960
|
|
7
|
2" - 6"
|
1/2" - 3/4"
|
25 - 30
|
40 x 750
|
